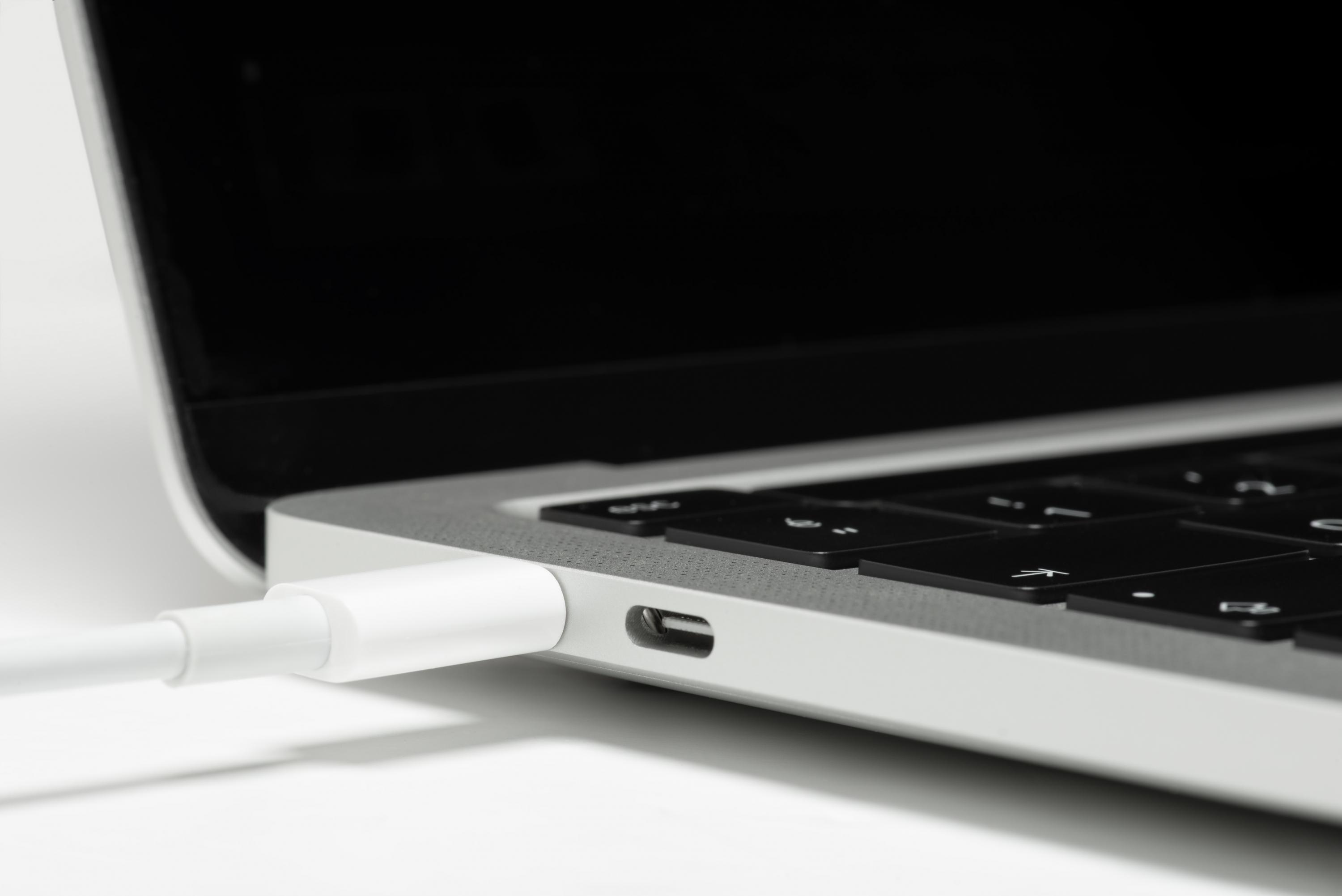

TBT4
Feature
- Compatibility with Thunderbolt 3
- Support for dual 4K 60Hz or One 8K 60Hz monitors ; PCIe Gen 3x4 32Gbps; DP1.4A
- Support USB4 40Gb/s
Application
- Smartphone
- Tablet
- Notebook(Laptops)
- Home Entertainment
Electrical Specification
- Conductor Resistance: 2Ω Max. at 20 ℃
- Insulation Resistance:300VDC 20M Ω Min. For 10mS
- Open & Short Test: 100%
- Meet Thunderbolt4 High frequency testing
Mechanical Specification
- USB C Connector insertion loss:5N-20N
- USB C Connector extraction loss:8N-20N
- Insertion/Extraction Cycles: 10,000 cycles Min.
- Photo
- Part No
- Connector 1
- Connector 2
- Version
- Length (MM)
- Data Rate
- Current Rating
- Electronically Marker
- Part No
- CBATB4001-050A
- USB-C
- USB-C
- TBT4, SPR Cable
- 500
- 40Gbps, 100W
- 5A
- Required
- CBATB4001-050A
-
- CBATB4001-070A
- USB-C
- USB-C
- TBT4, SPR Cable
- 720
- 40Gbps, 100W
- 5A
- Required
- CBATB4001-070A
-
- CBATB4001-080A
- USB-C
- USB-C
- TBT4, SPR Cable
- 800
- 40Gbps, 100W
- 5A
- Required
- CBATB4001-080A
-
- CBATB4001-070A08
- USB-C
- USB-C
- TBT4, SPR Cable
- 720
- 40Gbps, 100W
- 5A
- Required
- CBATB4001-070A08
-
-
- CBATB4006-030A01
- USB-C
- USB-C
- TBT4, EPR Cable
- 300
- 40Gbps, 240W
- 5A
- Required
- CBATB4006-030A01
-
-
- CBATB4007-050A01
- USB-C
- USB-C
- TBT4, EPR Cable
- 500
- 40Gbps, 240W
- 5A
- Required
- CBATB4007-050A01
-
-
- CBATB4007-070A01
- USB-C
- USB-C
- TBT4, EPR Cable
- 700
- 40Gbps, 240W
- 5A
- Required
- CBATB4007-070A01
-
-
- CBATB4007-080A01
- USB-C
- USB-C
- TBT4, EPR Cable
- 800
- 40Gbps, 240W
- 5A
- Required
- CBATB4007-080A01
-
-
- CBATB4005-100A01
- USB-C
- USB-C
- TBT4, EPR Cable
- 1000
- 40Gbps, 240W
- 5A
- Required
- CBATB4005-100A01
-
