USB4
Feature
- Runs over USB-C Interconnect
- USB4 40Gbps Maximum Speed over USB Type-C
- Compatible with USB 2.0/3.2 and Thunderbolt 3 products
- Tunnels USB 3.2/DP/PCIe protocols
Application
- Smartphone
- Tablet
- Notebook(Laptops)
- Home Entertainment
Electrical Specification
- Conductor Resistance: 2Ω Max. at 20 ℃
- Insulation Resistance:300VDC 20M Ω Min. For 10mS
- Open & Short Test: 100%
- Meet USB4 Gen2/Gen3 High frequency testing
Mechanical Specification
- USB C Connector insertion loss:5N-20N
- USB C Connector extraction loss:8N-20N
- Insertion/Extraction Cycles: 10,000 cycles Min.
- Photo
- Part No
- Connector 1
- Connector 2
- Version
- Length (MM)
- Data Rate
- Current Rating
- Electronically Marker
- Part No
- CBAUB-H41-100A
- USB-C
- USB-C
- USB 4 ,GEN3, SPR Cable
- 1000
- 40Gbps, 100W
- 5A
- Required
- CBAUB-H41-100A
-
- CBAUB-H42-030A
- USB-C
- USB-C
- USB 4 ,GEN3, SPR Cable
- 300
- 40Gbps, 100W
- 5A
- Required
- CBAUB-H42-030A
-
-
- CBAUB-H40-050A
- USB-C
- USB-C
- USB 4 ,GEN3, SPR Cable
- 500
- 40Gbps, 100W
- 5A
- Required
- CBAUB-H40-050A
-
-
- CBAUB-H40-070A
- USB-C
- USB-C
- USB 4 ,GEN3, SPR Cable
- 720
- 40Gbps, 100W
- 5A
- Required
- CBAUB-H40-070A
-
- CBAUB-H40-080A
- USB-C
- USB-C
- USB 4 ,GEN3, SPR Cable
- 800
- 40Gbps, 100W
- 5A
- Required
- CBAUB-H40-080A
-
-
- CBAUB-H45-030A01
- USB-C
- USB-C
- USB 4 ,GEN3, EPR Cable
- 300
- 40Gbps, 240W
- 5A
- Required
- CBAUB-H45-030A01
-
-

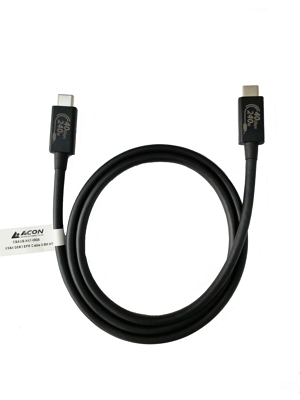

- CBAUB-H47-050A01
- USB-C
- USB-C
- USB 4 ,GEN3, EPR Cable
- 500
- 40Gbps, 240W
- 5A
- Required
- CBAUB-H47-050A01
-
-
- CBAUB-H47-070A01
- USB-C
- USB-C
- USB 4 ,GEN3, EPR Cable
- 700
- 40Gbps, 240W
- 5A
- Required
- CBAUB-H47-070A01
-
- CBAUB-H47-080A01
- USB-C
- USB-C
- USB 4 ,GEN3, EPR Cable
- 800
- 40Gbps, 240W
- 5A
- Required
- CBAUB-H47-080A01
-

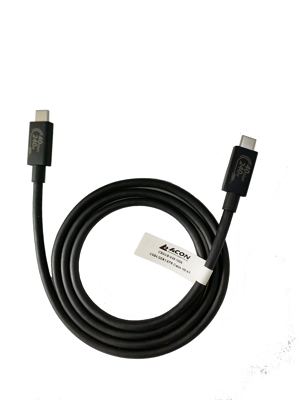

- CBAUB-H46-100A01
- USB-C
- USB-C
- USB 4 ,GEN3, EPR Cable
- 1000
- 40Gbps, 240W
- 5A
- Required
- CBAUB-H46-100A01
-
