USB C (customized)
Feature
- Fully meet USB Association Standard
- Cable Spec and Length can be Customized
- USB3.2 Gen1 & Gen2 with higher data rate
- Current Rating: 3A & 5A
- With power charging, data transfer, DP video and audio capability
Application
- On-Board Infotainment
Electrical Specification
- Conductor Resistance: 5 Ω Max. at 20 ℃
- Insulation Resistance:300VDC 20M Ω Min. For 10mS
- Open & Short Test: 100%
- Meet USB High frequency test
Mechanical Specification
- USB C Connector insertion loss:5N-20N
- USB C Connector extraction loss:8N-20N
- Insertion/Extraction Cycles: 10,000 cycles Min.
- Photo
- Part No
- Connector 1
- Connector 2
- Version
- Length (MM)
- Data Rate
- Current Rating
- Electronically Marker
- Part No

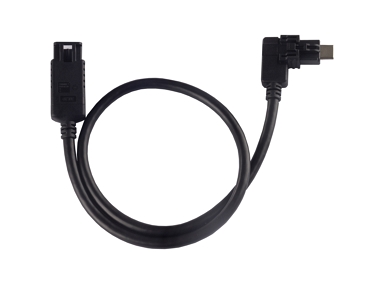

- CBA68-102-050A
- USB C Straight Receptacle
- USB C Right Angle Plug
- 500
- --
- --
- --
- --
- CBA68-102-050A
-
- CBA68-101-150A
- USB C Straight Plug
- USB C Straight Plug
- 1500
- --
- --
- --
- --
- CBA68-101-150A
-
