Feature
- Positioned Push-Pull Circular Plastic Connectors (P series)
- Positioned Push-Pull Circular Metal Connectors (B series)
- Positioned push-button locking Circular Plastic Connectors (D series)
Application
- Medical
- Industrial Control
- Energy
- Broadcast
- Construction Vehicle
- Surveillance / Police

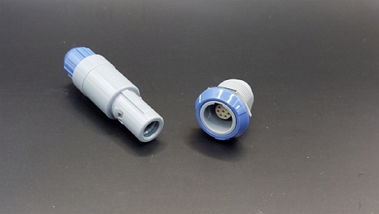

P Series
- Push pull
- 2 Sizes
- 2 to 34 pin
- >2000 mating cycles
- PSU working temp.- 50°C~150°C
- PEI working temp. -50°C~170°C
- Solder & DIP contact
- Rated current 2~10A
- 7 colors
- 6 keyways
- IP50
Product Image | Sockets Type | Type | Keying | Outer Shell | Contact Type | Pin Counts | Collet | nut Colour | Fitting | Part No |

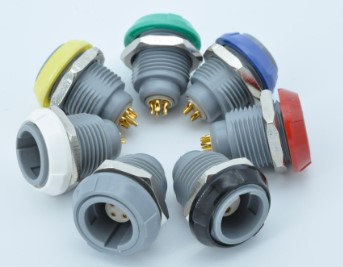

Fixed Socket | 1P Standard | G/A/B/C/H/J | Grey PSU | Female(Solder) | 2~14 | NA | G/A/J/N/R/V/B | NA | 613012-**A8** | |
Free Socket | 1P Standard | G/A/B/C/H/J | Grey PSU | Female(Solder) | 2~14 | 20/39/52/66 | G/A/J/N/R/V/B | NA | 613017-**B8** | |
Fixed Socket | 2P Standard | B/C/D/H/J | Grey PSU | Female(Solder) | 2~34 | NA | G/A/J/N/R/V | NA | 613022-**A8** |
Product Image | Plugs Type | Type | Keying | Outer Shell | Contact Type | Pin Counts | Collet | nut Colour | Fitting | Part No |

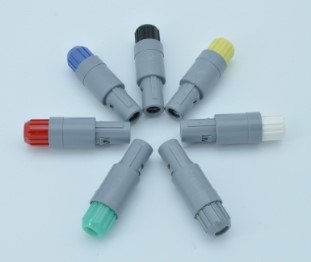

Straight Plug | 1P Standard | G/A/B/C/H/J | Grey PSU | Male(Solder) | 2~14 | 20/39/52/65 | G/A/J/N/R/V/B | NA | 613010-**A0** | |
Straight Plug | 2P Standard | B/C/D/H/J | Grey PSU | Male(Solder) | 2~34 | 52/72/92 | G/A/J/N/R/V/B | YES | 613020-**A0** |

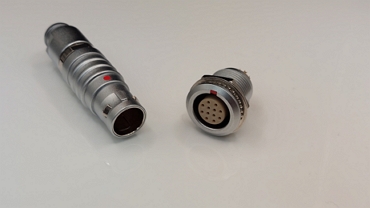

B Series
- Push pull
- 5 Sizes
- 2 to 48 pin
- >5000 mating cycles
- Working temp.- 55°C~250°C
- Solder, print & crimp contact
- Rated current 1.5~35A
- Multiple keyways
- IP50
D Series

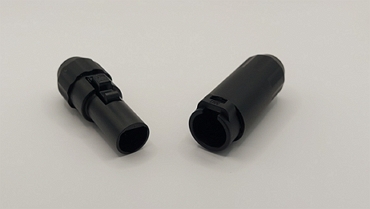

- Plastic shell, push-button locking
- D02 size, 5~ 16pin
- Soldercup and crimp assembly
- 10,000/30,000 mating cycles
- Single contact 1.0~4.0A
- Withstand voltage 0.75 Kv VDC
- Working temp. -40°C~+85°C
- Suitable for medical & industrial markets
Product Image | Receptcle/Plug | Type | Contact type | Mount Type | Contact Footprint | Pin Counts | Color | Insulator | Plating | Part No |

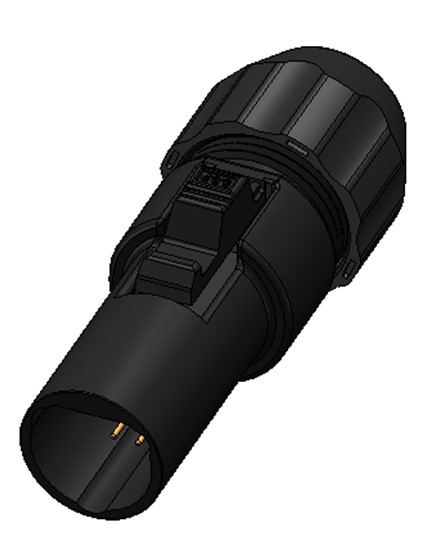

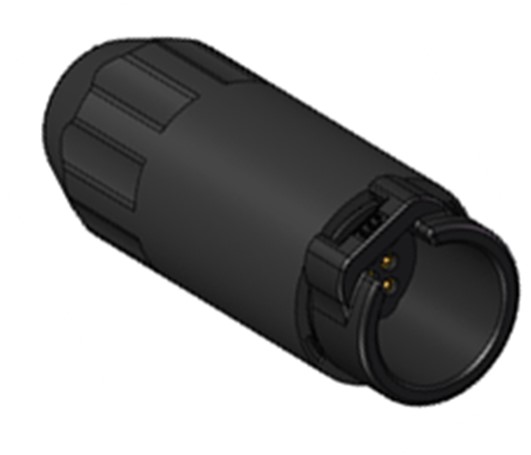

Receptacle | D02 | Normal Female | Cable | Solder | 5~16 | Black | PC | 10u" | 620001-**K3500 | |
Plug | D02 | Normal Male | Cable | Solder | 5~16 | Black | PC | 10u" | 620000-**K3400 |
