電纜組件(Cable Assembly)

USB Cable

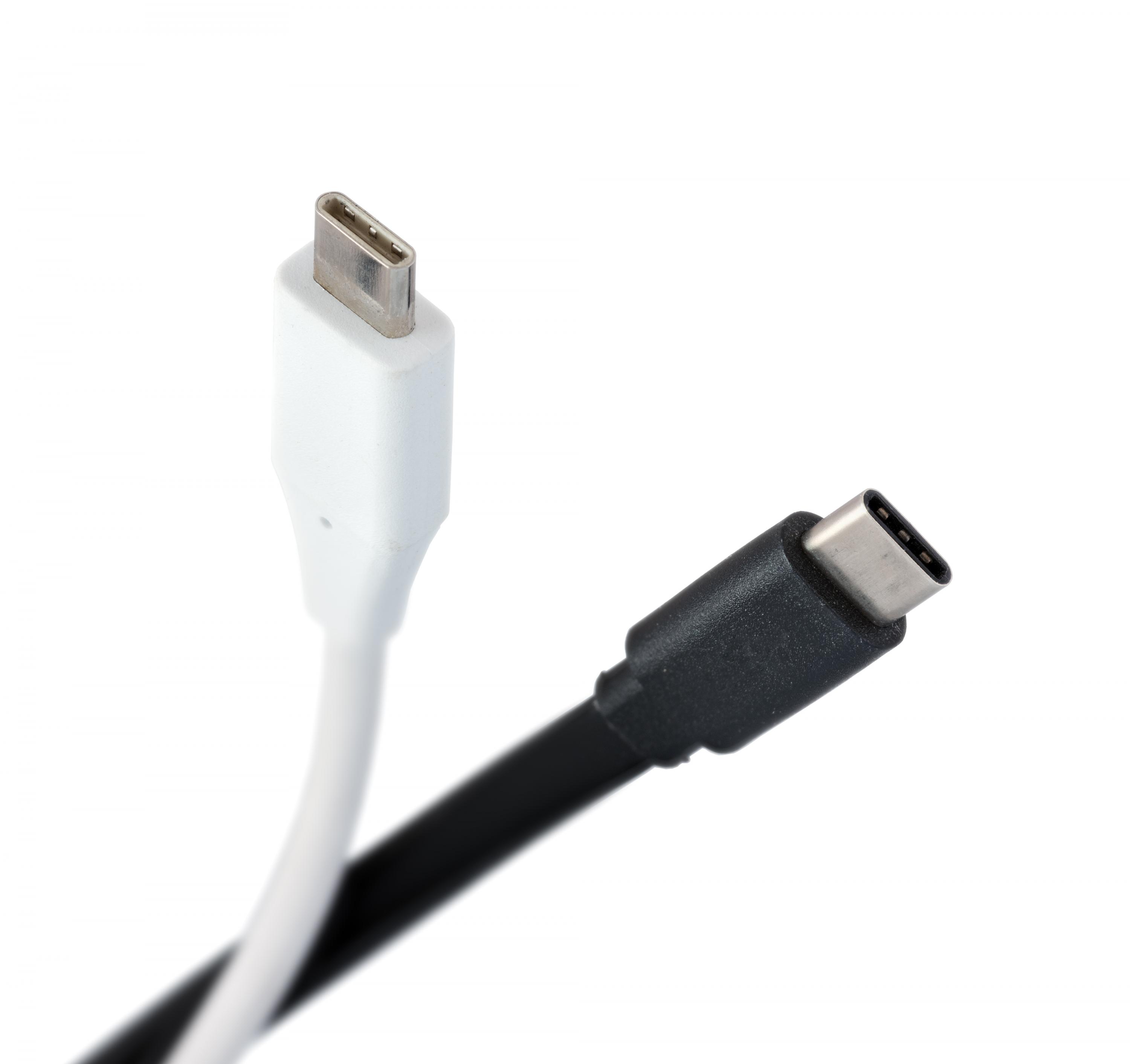

USB C 3.2

Feature

  • Fully meet USB Association Standard
  • Cable Spec and Length can be Customized
  • USB3.2 Gen1 &  Gen2 with higher data rate
  • Current Rating: 3A & 5A
  • With power charging, data transfer, DP video and audio capability

Application

  • Smartphone
  • Tablet
  • Notebook(Laptops)
  • Home Entertainment

Electrical Specification

  • Conductor Resistance: 5 Ω Max. at 20 ℃
  • Insulation Resistance:300VDC 20M Ω Min. For 10mS
  • Open & Short Test: 100%
  • Meet USB  High frequency test

Mechanical Specification

  • USB C Connector insertion loss:5N-20N
  • USB C Connector extraction loss:8N-20N
  • Insertion/Extraction Cycles: 10,000 cycles Min.
  • Photo
  • Part No
  • Connector 1
  • Connector 2
  • Version
  • Length (MM)
  • Data Rate
  • Current Rating
  • Electronically Marker
  • Part No
  • CBAUB-C68-200A
  • USB-C
  • USB-C
  • USB 3.2
  • 2000
  • 10Gbps
  • 3A
  • Required
  • CBAUB-C68-200A
  • CBAUB-C67-100A
  • USB-C
  • USB-C
  • USB 3.2
  • 1000
  • 20Gbps
  • 3A
  • Required
  • CBAUB-C67-100A
  • CBAUB-CB9-100A
  • USB-C
  • USB-C
  • USB 3.2
  • 1000
  • 20Gbps
  • 3A
  • Required
  • CBAUB-CB9-100A
  • CBAUB-H08-100A
  • USB-C
  • USB-C
  • USB 3.2
  • 1000
  • 20Gbps
  • 5A
  • Required
  • CBAUB-H08-100A
