USB 3.0

Contact all electronic products with PC and NB

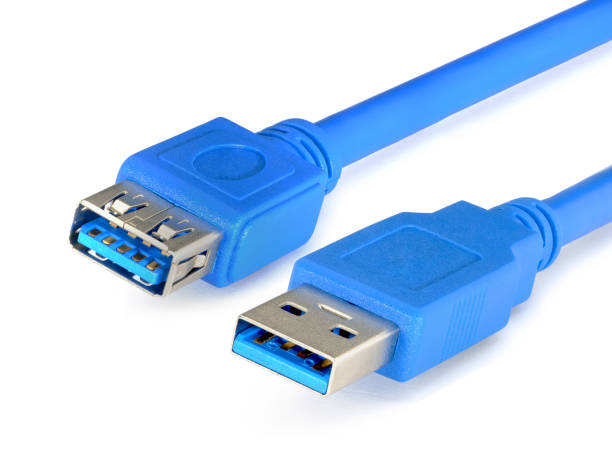

  • 9Pin, Series Type A Plugs and Type A/B Receptacles
  • Faster Data Transfer, Supporting 5Gbps Data Rate
  • Additional Pins for Two More Differential Pairs for the Super Speed Signals
  • Fully Compliant with Current USB 2.0 specifications
  • Low Power Efficiency

General Specification

  • Supporting USB3.0/ USB 3.1 Gen1/Gen2
  • Contact Current Rating 1.8A
  • Dielectric Withstanding Resistance: 100V AC
  • Mated Connector Impedance 75 ~105 Ω
  • Mating Force: 35N Max.
  • Un-mating Force: Initial 10N Min.; After 8N Min.
  • Durability by 5,000 cycle times


  • PC
  • NB
  • IPC
  • Server
  • MFP
  • Networking
