USB C 2.0
Feature
- Fully meet USB Association Standard
- Cable Spec and Length can be Customized
Application
- Smartphone
- Tablet
- Notebook(Laptops)
- Home Entertainment
Electrical Specification
- Conductor Resistance: 5 Ω Max. at 20 ℃
- Insulation Resistance:300VDC 20M Ω Min. For 10mS
- Open & Short Test: 100%
- Meet USB High frequency test
Mechanical Specification
- USB C Connector insertion loss:5N-20N
- USB C Connector extraction loss:8N-20N
- Insertion/Extraction Cycles: 10,000 cycles Min.
- Photo
- Part No
- Connector 1
- Connector 2
- Version
- Length (MM)
- Data Rate
- Current Rating
- Electronically Marker
- Part No

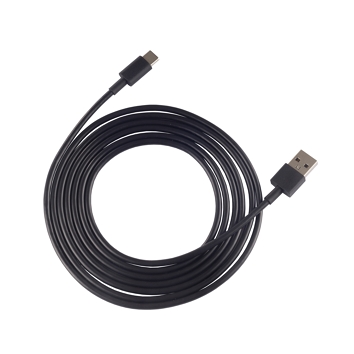

- CBAUB-C66-200A
- USB-C
- USB-A
- USB 2.0
- 1000
- 480Mbps
- 3A
- Not Required
- CBAUB-C66-200A
-
- CBAUB-CK3-200A
- USB-C
- USB-A
- USB 2.0
- 2000
- 480Mbps
- 3A
- Not Required
- CBAUB-CK3-200A
-

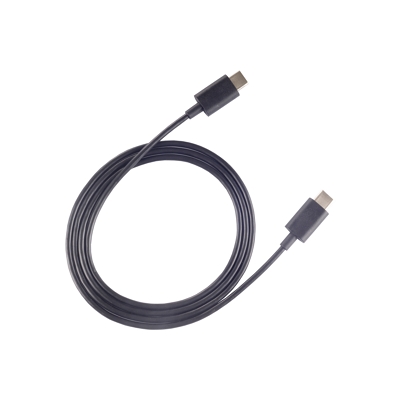

- CBAUB-C61-200A
- USB-C
- USB-C
- USB 2.0
- 1000
- 480Mbps
- 3A
- Not Required
- CBAUB-C61-200A
-
