Feature
- SR with different angles can adapt to various assembly environments (25 °, 90 ° and 180 °)
- Reduce a pair of connectors to achieve cost reduction requirements
- Different coding for error free mating
- Temperature range -40°C to + 105°C
- ROHS, ELV Conformity
Application
- On-Board Infotainment
Electrical Specification
- 100% Open & Short test
- Conductor resistance : 3 Ω MAX.
- Insulation resistance : DC300V 10M OHM MIN 0.5S
- HI-POT：300V AC 1.0mA
Mechanical Specification
- Pullout force min（0.75mm²）90 N
- Pullout force min（0.14mm²）13.4 N
Product List
MQS & HSD Cable
- Product Image
- Part No
- Connector 1
- Connector 2
- Length (MM)
- Part No

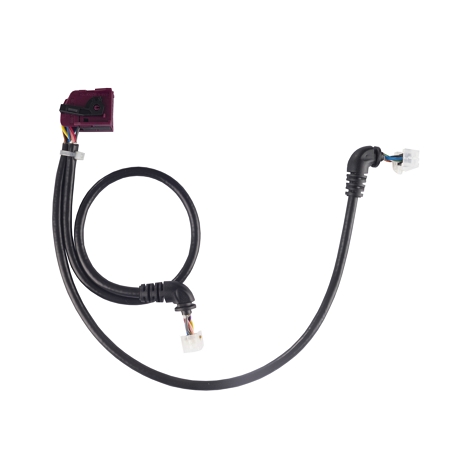

- CBA68-201D034A
- 14Pin MQS Connector
- Pigtail
- 360
- CBA68-201D034A
-

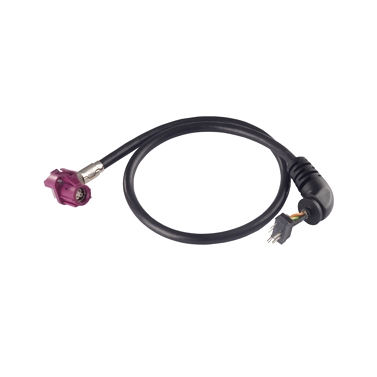

- CBA68-202D034A
- 4Pin HSD Connector
- Pigtail
- 360
- CBA68-202D034A
-
