Feature

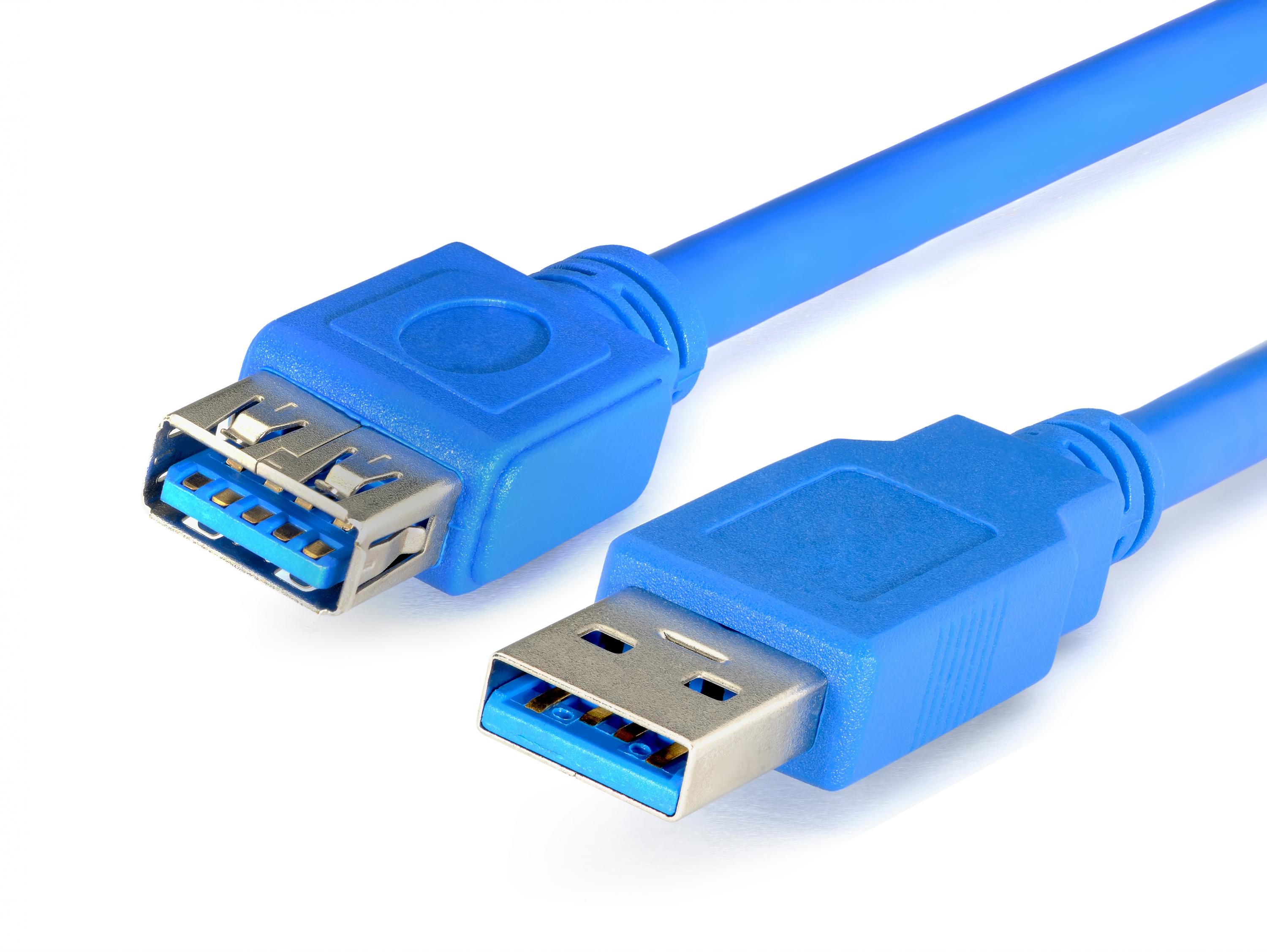

- 9Pin, Series Type A Plugs and Type A/B Receptacles
- Faster Data Transfer, Supporting 5Gbps Data Rate
- Additional Pins for Two More Differential Pairs for the Super Speed Signals
- Fully Compliant with Current USB 2.0 specifications
- Low Power Efficiency
General Specification
- Supporting USB3.0/ USB 3.1 Gen1/Gen2
- Contact Current Rating 1.8A
- Dielectric Withstanding Resistance: 100V AC
- Mated Connector Impedance 75 ~105 Ω
- Mating Force: 35N Max.
- Un-mating Force: Initial 10N Min.; After 8N Min.
- Durability by 5,000 cycle times
適用機種
- 桌上型電腦
- 筆記本電腦
- 工業電腦
- 伺服器
- 多功能事務機
- 網通產品
Product List
