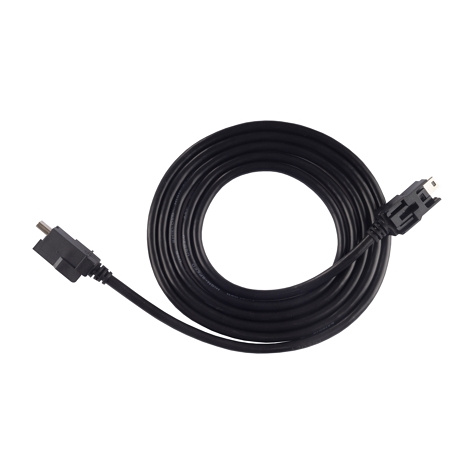

Mini USB (customized)
Feature
- Fully meet USB Association Standard
- Different coding for error free mating
- Temperature range -20°C to + 85°C
- RoHS, ELV Conformity
Application
- On-Board Infotainment
Electrical Specification
- 100% Open & Short test
- Conductor resistance : 3 Ω MAX
- Insulation resistance : DC300V 10M OHM MIN 0.5S
- HI-POT：300V AC 1.0mA
Mechanical Specification
- Insertion Force Max. 35 N
- Extraction Force Min. 10 N
- Insertion/Extraction lifycycles: 5000 cycles Min.
- Photo
- Part No
- Connector 1
- Connector 2
- Version
- Length (MM)
- Data Rate
- Current Rating
- Electronically Marker
- Part No
- CBAUB-902-103A
- Mini USB Plug
- 12 Way Plug
- 1097
- --
- --
- --
- --
- CBAUB-902-103A
-
- CBAUB-409-100A
- Mini USB Plug
- Mini USB Plug
- 1000
- --
- --
- --
- --
- CBAUB-409-100A
-
