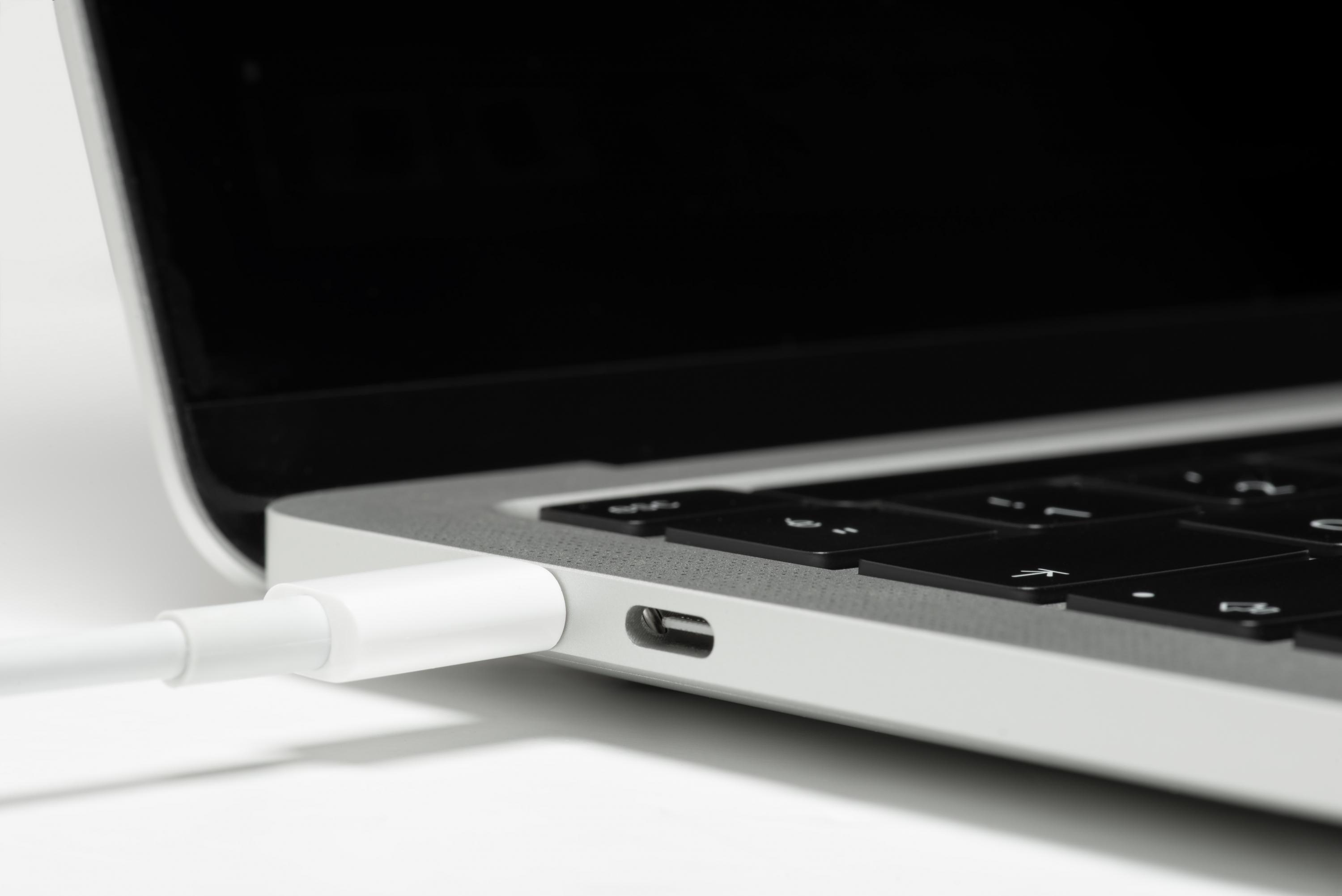

TBT3
Feature
- Operating Systems : MacOS / Windows
- Data Rate: Up to 40Gbps
- Protocols natively supported: Thunderbolt 3, DisplayPort 1.4 and below, USB 2.0 & USB 3.2 Gen2
- Power supported 5A current , Up to 100W
Application
- Smartphone
- Tablet
- Notebook(Laptops)
- Home Entertainment
Electrical Specification
- Conductor Resistance: 2Ω Max. at 20 ℃
- Insulation Resistance:300VDC 20M Ω Min. For 10mS
- Open & Short Test: 100%
- Meet Thunderbolt 3 High frequency testing
Mechanical Specification
- USB C Connector insertion loss:5N-20N
- USB C Connector extraction loss:8N-20N
- Insertion/Extraction Cycles: 10,000 cycles Min.
- Photo
- Part No
- Connector 1
- Connector 2
- Version
- Length (MM)
- Data Rate
- Current Rating
- Electronically Marker
- Part No
- CBATB-010-150A
- USB-C
- USB-C
- -
- 1500
- 40Gbps
- 5A
- Required
- CBATB-010-150A
-
- CBATB-010-200A
- USB-C
- USB-C
- -
- 2000
- 20Gbps
- 5A
- Required
- CBATB-010-200A
-
- CBATB-002-050A
- USB-C
- USB-C
- -
- 500
- 40Gbps
- 5A
- Required
- CBATB-002-050A
-
- CBATB-002-070A
- USB-C
- USB-C
- -
- 700
- 40Gbps
- 5A
- Required
- CBATB-002-070A
-
